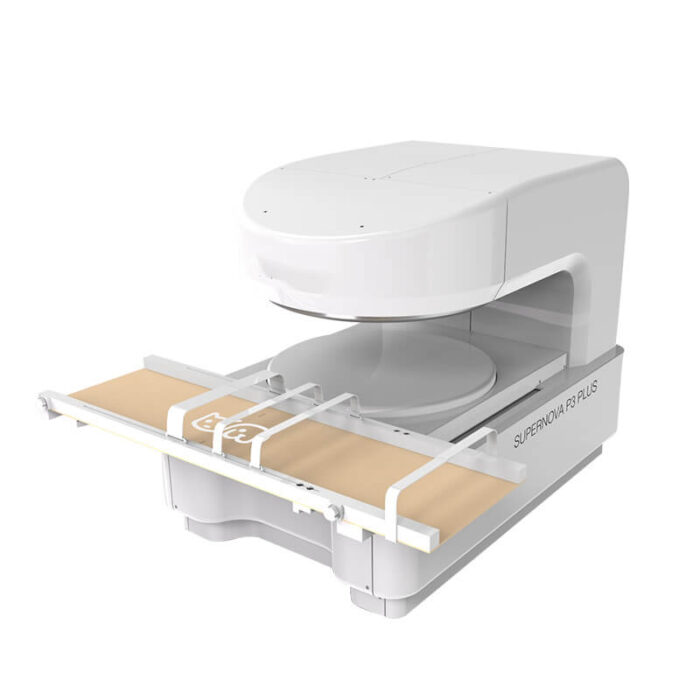

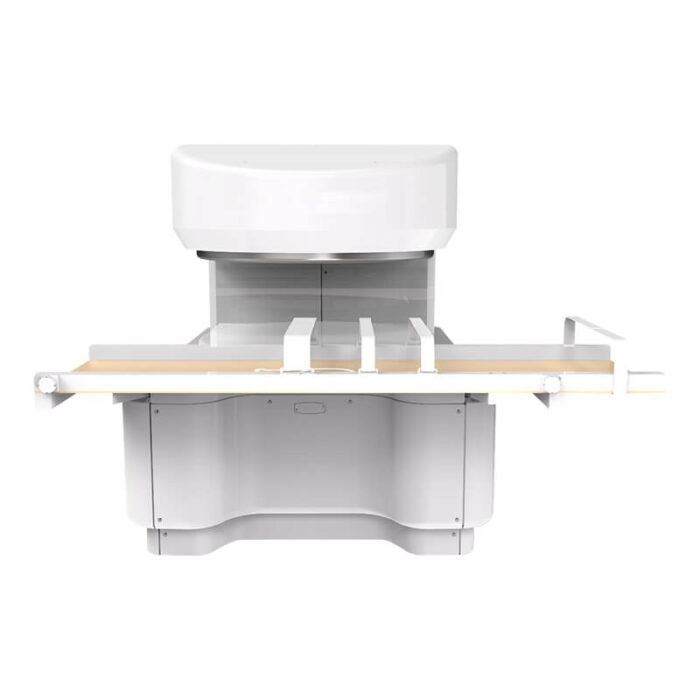

0.3T Pet MRI System Uzzdbc-015(Supernova P3 Plus)

Technical Parameter:

1. Magnet:

• Magnet Field strength 0.3 T
• Homogeneity ＜35 ppm(peak-peak) in 32cm DSV (Shimming of magnetic plates and first-order shimming of gradient coils)
• 5GS line <1.85m
• Patient Gap(Cover to cover) 350mm in height
• Magnet Size 1675mm* 1100mm* 1492mm（Length*Width*Height）
• Magnet weight 8 tons

2. Gradient amplifier Load voltage: 300V, Max current: 250A 1
3. TX coil: Plate-type QD TX coil
4. RX coil:

• PA D11 pet coil
• PA D18 pet coil
• PA D24 pet coil

5. RF amplifier: 6 kW
6. Scan control unit (Spectrometer):4-channel receive
7. Computer system: LCD Monitor and DICOM 3.0 printer interface(Can be remotely)
8. Operation software: Supernova Software Package

9. Manual Examination Bed:

• Load capacity 100Kg
• Overall length of bed: 1600 mm (with extension plate to 1900 mm)
